Up Down Counter
# 14 Jamie    02.8.29 13:28

1.Spec

이번에는 UpDown count를 설계해 보겠습니다.
앞서 설계한 Up count에 Up과 Down을 control할 수 있는 updn이란 signal을 추가했습니다.
이 signal의 값에 따라 count값을 증가 혹은 감소할 수 있습니다.

2.Input/Output

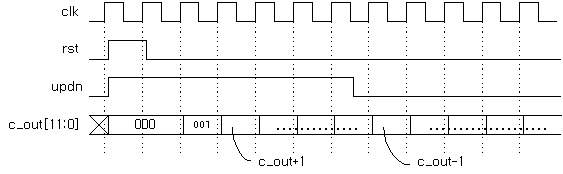

3.Timing

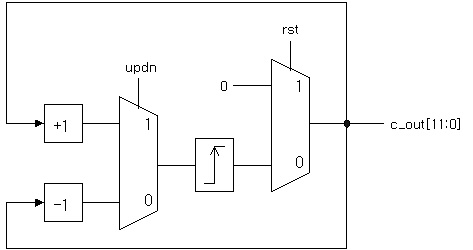

4.Block Diagram



5.RTL Code : updown_count.vhd
  Test Vector : updown_count_tb.vhd
